Drawing regular polygons on Cairo

The next object I want to implement on GGredit is an object that allow to draw a generic regular polygon, the user can define the number of sides and GGredit draw this polygon (inkscape have a similar tool named "Polygon and Star").

The Ellipse

Once you know how to draw an ellipse is easy to draw regular polygons or stars. For draw an ellipse we need on input:

• double cx: the x center of the ellipse


• double cy: the y center of the ellipse


• double rx: the horizzontal radius of the ellipse


• double ry: the vertical radius of the ellipse

These values can be easily evaluated starting from a rectangle.
Since the size of a full circle is 2π, we need a loop that draw all point between 0 and 2 * M_PI (M_PI is the constant on cmath for PI).

#include
.
.
.
for (double alpha = 0; alpha <= 2 * M_PI; aplha+=0.1)
{
  double px = cx + rx * cos (alpha);
  double py = cy + ry * sin (alpha);
  // px, py is current point
}

For loop radians I use a step of 0.1, this is only for simplify since in effect we have infinite points on an ellipse.
Draw al points on Cairo is a beat more sophisticated since we need to define a path using move_to() and line_to() functions. So we need to call the move_to() function for the first point out of the loop and the call all the line_to() functions on the loop.

double alpha = 0;
double alpha_step = 0.1;

// First point
double px1 = cx + rx * cos (alpha);
double py1 = cy + ry * sin (alpha);
cr->move_to (px1, py1); // cr is the cairo context

for (double alpha = 0; alpha <= 2 * M_PI; aplha+=alpha_step)
{
  double px = cx + rx * cos (alpha);
  double py = cy + ry * sin (alpha);
  cr->line_to (px, py); // cr is the cairo context
}

This is only theory, Cairo have the arc() function for draw ellipses.

Polygons

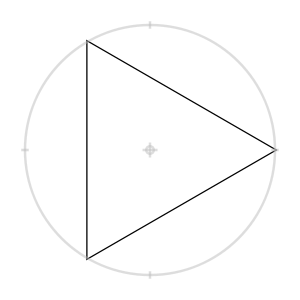

The step of the loop is the key for draw polygons. If whe take only three equidistant points of an ellipse we have a triangle. For get three equidistant points we simply need to evaluate the alpha_step using: (M_PI * 2) / 3.

We can generically evaluate the step needed for draw a polygon by dividing M_PI * 2 for the number of sides of the required polygon: (M_PI * 2) / sides_count.
This is a Gtk::DrawingArea inherited widget that display a polygon:

/*
 * PolygonView.h
 *
 *  Created on: Sep 9, 2008
 *      Author: user
 */

#ifndef POLYGONVIEW_H_
#define POLYGONVIEW_H_

#include

class PolygonView : public Gtk::DrawingArea
{
public:
 PolygonView();
 virtual ~PolygonView();

 double getSidesCount() const { return sides_count_; };
 void setSidesCound(double value) { sides_count_ = value; };

 void rotate(double cx, double cy, double radians);
 void saveSvg(const std::string& file_name);

protected:
 Gdk::Color back_color_;
 Gdk::Color stroke_color_;
 Gdk::Color fill_color_;
 Gdk::Color help_color_;
 Gdk::Color rotation_color_;
 Gdk::Rectangle polygon_bounds_;
 double rotation_center_x_;
 double rotation_center_y_;
 double rotation_degrees_;
 double sides_count_;
 bool draw_help_;
 bool draw_rotation_;

protected:
 bool on_expose_event(GdkEventExpose* event);

 void draw(Cairo::RefPtr< Cairo::Context > context_ref);
 void draw_ellipse(Cairo::RefPtr< Cairo::Context > context_ref, const Gdk::Rectangle& bounds);
};

#endif /* POLYGONVIEW_H_ */

PolygonView.h

/*
 * PolygonView.cpp
 *
 *  Created on: Sep 9, 2008
 *      Author: user
 */

#include "PolygonView.h"

#include
#include

PolygonView::PolygonView() :
 back_color_( "white" ),
 stroke_color_( "black" ),
 fill_color_( "white" ),
 help_color_( "gray" ),
 rotation_color_( "red" ),
 polygon_bounds_( 20, 20, 200, 200),
 rotation_center_x_( 110 ),
 rotation_center_y_( 110 ),
 rotation_degrees_( 0 ),
 sides_count_( 5 ),
 draw_help_( true ),
 draw_rotation_( false )
{
}

PolygonView::~PolygonView()
{
}

void PolygonView::rotate(double cx, double cy, double radians)
{
 rotation_center_x_ = cx;
 rotation_center_y_ = cy;
 rotation_degrees_ = radians;
}

bool PolygonView::on_expose_event(GdkEventExpose *event)
{
 Glib::RefPtr< Gdk::Window > window_ref = get_window();

 if (window_ref)
 {
  Gtk::Allocation allocation = get_allocation();

  Cairo::RefPtr< Cairo::Context > context_ref = window_ref->create_cairo_context();

  if (event)
  {
   context_ref->rectangle (event->area.x, event->area.y, event->area.width, event->area.height);
   context_ref->clip();
  }

  // Draw background
  context_ref->set_source_rgb (back_color_.get_red_p(),
    back_color_.get_green_p(),
    back_color_.get_blue_p());

  context_ref->rectangle (0, 0, allocation.get_width(), allocation.get_height());
  context_ref->fill();

  draw (context_ref);
 }

 return true;
}

void PolygonView::saveSvg(const std::string& file_name)
{
 double wx =  polygon_bounds_.get_width() + polygon_bounds_.get_x() * 2;
 double wy =  polygon_bounds_.get_height() + polygon_bounds_.get_y() * 2;
 Cairo::RefPtr< Cairo::SvgSurface > surface_ref = Cairo::SvgSurface::create ( file_name, wx, wy);
 Cairo::RefPtr< Cairo::Context > context_ref = Cairo::Context::create (surface_ref);

 draw (context_ref);

 context_ref->show_page();

}

void PolygonView::draw(Cairo::RefPtr< Cairo::Context > context_ref)
{
 // Draw not rotated vector
 if (draw_rotation_)
 {
  context_ref->save();

  context_ref->set_source_rgba (help_color_.get_red_p(),
    help_color_.get_green_p(),
    help_color_.get_blue_p(), 0.5);

  context_ref->move_to (rotation_center_x_, rotation_center_y_);
  context_ref->line_to (rotation_center_x_ + 20, rotation_center_y_);
  context_ref->stroke();

  context_ref->restore();
 }

 context_ref->save();

 // Set rotation
 context_ref->translate (rotation_center_x_, rotation_center_y_);
 context_ref->rotate (rotation_degrees_);
 context_ref->translate (-rotation_center_x_, -rotation_center_y_);

 // Draw polygon
 double rx = polygon_bounds_.get_width() / 2.0;
 double ry = polygon_bounds_.get_height() / 2.0;
 double cx = polygon_bounds_.get_x() + rx;
 double cy = polygon_bounds_.get_y() + ry;

 // Define first vertex
 double alpha = 0.0;
 context_ref->move_to (cx + rx * cos(alpha), cy + ry * sin(alpha));

 // Define other vertexes
 double alpha_step = 2 * M_PI / sides_count_;
 for (int i = 1; i < sides_count_; i++)
 {
  alpha += alpha_step;
  context_ref->line_to (cx + rx * cos(alpha), cy + ry * sin(alpha));
 }
 context_ref->close_path();

 // Stroke and fill polygon
 context_ref->set_source_rgb (stroke_color_.get_red_p(),
   stroke_color_.get_green_p(),
   stroke_color_.get_blue_p());

 context_ref->stroke_preserve();

 context_ref->set_source_rgb (fill_color_.get_red_p(),
   fill_color_.get_green_p(),
   fill_color_.get_blue_p());

 context_ref->fill();

 if (draw_rotation_)
 {
  // Draw rotation center
  context_ref->set_source_rgba (rotation_color_.get_red_p(),
    rotation_color_.get_green_p(),
    rotation_color_.get_blue_p(), 0.5);

  Gdk::Rectangle rot_center (rotation_center_x_ - 3, rotation_center_y_ - 3, 6, 6);

  draw_ellipse (context_ref, rot_center);
  context_ref->stroke();

  context_ref->move_to (rotation_center_x_, rotation_center_y_ - 6);
  context_ref->line_to (rotation_center_x_, rotation_center_y_ + 6);
  context_ref->stroke();

  context_ref->move_to (rotation_center_x_ - 6, rotation_center_y_);
  context_ref->line_to (rotation_center_x_ + 6, rotation_center_y_);
  context_ref->stroke();

  context_ref->move_to (rotation_center_x_, rotation_center_y_);
  context_ref->line_to (rotation_center_x_ + 20, rotation_center_y_);
  context_ref->stroke();
 }

 if (draw_help_)
 {
  // Draw center
  context_ref->set_source_rgba (help_color_.get_red_p(),
    help_color_.get_green_p(),
    help_color_.get_blue_p(), 0.5);

  Gdk::Rectangle center (cx - 3, cy - 3, 6, 6);

  draw_ellipse (context_ref, center);
  context_ref->stroke();

  context_ref->move_to (cx, cy - 6);
  context_ref->line_to (cx, cy + 6);
  context_ref->stroke();

  context_ref->move_to (cx - 6, cy);
  context_ref->line_to (cx + 6, cy);
  context_ref->stroke();

  // Draw 0, M_PI/2, M_PI, M_PI/2*3
  context_ref->move_to (cx + (rx - 3) * cos(0.0), cy + (ry - 3) * sin(0.0));
  context_ref->line_to (cx + (rx + 3) * cos(0.0), cy + (ry + 3) * sin(0.0));
  context_ref->stroke();

  context_ref->move_to (cx + (rx - 3) * cos(M_PI / 2.0), cy + (ry - 3) * sin(M_PI / 2.0));
  context_ref->line_to (cx + (rx + 3) * cos(M_PI / 2.0), cy + (ry + 3) * sin(M_PI / 2.0));
  context_ref->stroke();

  context_ref->move_to (cx + (rx - 3) * cos(M_PI), cy + (ry - 3) * sin(M_PI));
  context_ref->line_to (cx + (rx + 3) * cos(M_PI), cy + (ry + 3) * sin(M_PI));
  context_ref->stroke();

  context_ref->move_to (cx + (rx - 3) * cos(M_PI / 2.0 * 3.0), cy + (ry - 3) * sin(M_PI / 2.0 * 3.0));
  context_ref->line_to (cx + (rx + 3) * cos(M_PI / 2.0 * 3.0), cy + (ry + 3) * sin(M_PI / 2.0 * 3.0));
  context_ref->stroke();

  // Draw bounds ellipse
  draw_ellipse (context_ref, polygon_bounds_);
  context_ref->stroke();
 }

 context_ref->restore();
}

void PolygonView::draw_ellipse(Cairo::RefPtr< Cairo::Context > context_ref, const Gdk::Rectangle& bounds)
{
 context_ref->save();

 context_ref->translate (bounds.get_x() + (bounds.get_width() / 2.0),
   bounds.get_y() + (bounds.get_height() / 2.0));

 context_ref->scale (bounds.get_width() / 2.0,
   bounds.get_height() / 2.0);

 context_ref->arc (0.0, 0.0, 1.0, 0.0, 2 * M_PI);

 context_ref->restore();
}

PolygonView.cpp
